Maintaining an Outbound Integration Endpoint

Outbound integration endpoint settings can be viewed and edited from the Outbound Integration Endpoint editor. For information about creating a new outbound endpoint, see the Creating an Outbound Integration Endpoint section here.

Important: In order to avoid unnecessary Pollers from being generated, which can lead to a decline in system performance, endpoints should be disabled before making changes to unwanted processes. For more information regarding disabling an endpoint, see the Running an Outbound Integration Endpoint topic here.

Each tab on the editor is defined below and includes parameters to maintain the OIEP.

Outbound Integration Endpoint Tab

This tab holds basic information within the flippers defined below.

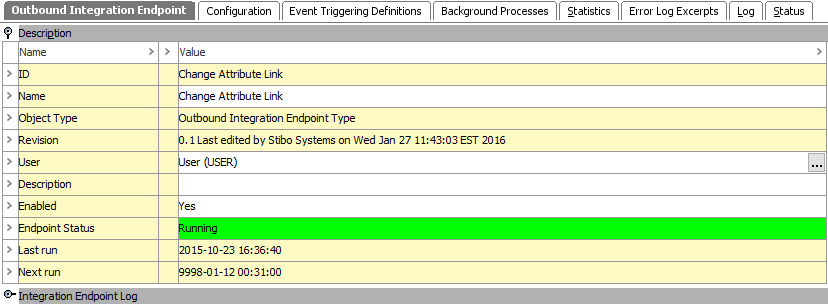

Description Flipper

The Description flipper includes basic information to identify the OIEP. The name, user, description, and enabled parameters can be edited.

For information on the Endpoint Status, see Running an Outbound Integration Endpoint documentation here.

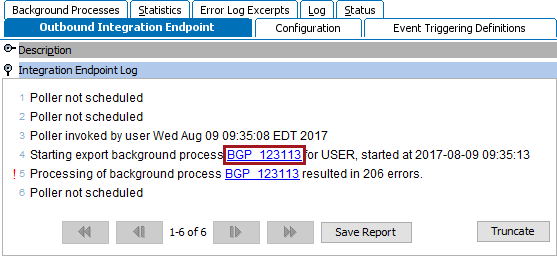

Integration Endpoint Log Flipper

The Integration Endpoint Log flipper contains information about the endpoint background process. An entry is generated each time the endpoint is invoked, when background processes generated by the endpoint are started, and when processing errors occur.

• BGP link - The background process opens the individual Importer Background Processes.

• Navigation - After the first entry, the Execution Report displays the following navigation buttons:

The navigation buttons are enabled when until the log reaches over 100 lines.

• Selecting the button will navigate back one page.
• Selecting the button will navigate to the beginning of the log.
• Selecting the button will navigate forward one page.
• Selecting the button will navigate to the end of the log.

• Save - Click the Save button () to save the Execution Report as an 'HTML Only' file type, then enter a name for the log report and click Save.

Note: Changing the default format manually may result in an error.

• Truncate - When the Execution Report becomes cluttered or only specific information is needed, use the Truncate option to permanently eliminate selected rows. Click the Truncate button () to display the Truncate execution report dialog:

• In Number of lines to retain, the current number of log entries will display. Type the number of lines to keep starting from the end of the log, and permanently deleting the oldest rows, based on the selected entry types below.

• In Execution report entry types to delete, select the types that should be permanently removed.

Note: The Properties flipper includes a count of the Warnings and Errors included in the Execution Report.

• Click OK to permanently remove the selected number and types of execution report entries or click Cancel to leave the report unchanged.

Configuration Tab

This tab contains many parameters required to successfully run an outbound integration endpoint.

Configuration Flipper

For the STEP Exporter and Business Rule Based Message Processor process engines, most of the parameters on this flipper can be edited. The type of editing available varies based on the parameter as defined below.

The Transactional setting parameter cannot be edited and does not have the same significance as for IIEPs. For information, see OIEP - Event-Based - Configure Endpoint (here) or OIEP - Select Objects - Configure Endpoint (here).

Depending on the Process Engine selected, a second Configuration flipper can be displayed. For more information, see the Processing Engine parameter in OIEP - Event-Based - Configure Endpoint (here) or OIEP - Select Objects - Configure Endpoint (here).

The following parameters can be edited within the OIEP editor as defined:

• Click the Process engine or Workspace parameter to display a dropdown button. Selections displayed depend on your system setup.

For information on the Process Engine or Workspace, see OIEP - Event-Based - Configure Endpoint (here) or OIEP - Select Objects - Configure Endpoint (here).

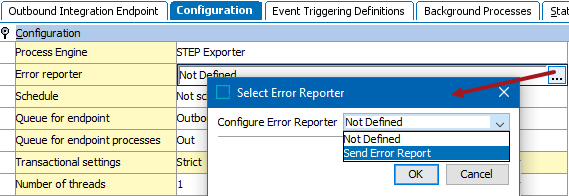

• Click the Error reporter, Schedule, or Contexts parameter to display an ellipsis button (). This opens a dialog for editing.

For information on the Error Reporter or Schedule, see the Error Reporter section of the OIEP - Configuration Flipper here.

• Click the Queue for endpoint, Queue for endpoint process, Number of threads, Maximum number of old processes, or Maximum age of old processes parameter to edit the text with the field.

For information on the Transactional settings, Number of threads, Contexts, and Workspace, see OIEP - Event-Based - Configure Endpoint (here) or OIEP - Select Objects - Configure Endpoint (here).

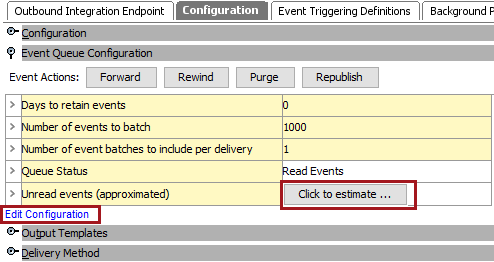

Event Queue Configuration Flipper

The additional configuration flipper displayed is determined by the type of OIEP being viewed. Event-based OIEPs include the Event Queue Configuration flipper.

• The Edit Configuration link allows modification to the parameters displayed.
• The Click to estimate button displays a list of unread events.
• For more information on the Event Action buttons, see Event-Based OIEP Forward, Rewind, Purge, and Republish here.

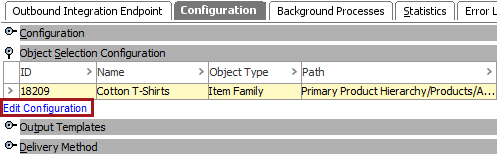

Object Selection Configuration Flipper

the Object Selection Configuration flipper is only displayed when the selected OIEP uses the Select Objects data source, as defined on the Choose Data Source step of the wizard. For more information, see OIEP - Select Objects - Choose Data Source here.

• The Edit Configuration link opens a dialog that allows modification to the objects selected for output. For details on the available options, see OIEP - Select Objects - Object Selection Configuration Flipper here.

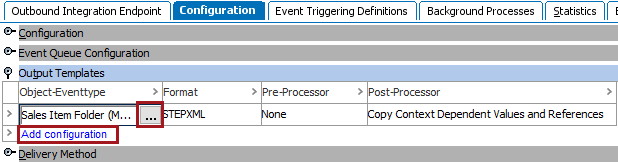

Output Templates Flipper

This flipper allows selection of object or event types, in addition to the format required for output. Preprocessors and postprocessors can also be set and availability is based on the system configuration.

• Click into a field to display an ellipsis button (). Click the ellipsis button () to display the relevant editor.
• Click the Add configuration link to insert a new row in the table.

For details on the output templates, see OIEP - Event-Based - Output Templates Flipper (here) or OIEP - Select Objects - Output Templates Flipper (here).

Delivery Method Flipper

Details about the delivery method selected are displayed.

• Click the Edit Delivery link to modify the parameters.

For details on the available options, see OIEP - Delivery Method Flipper here.

Background Processes Tab

This tab holds information about any related processes. Click the Background Process ID link to open the individual exporter background process.

For details on the states of a background process, see the BG Processes States topic in the System Setup / Super User Guide documentation here.

For more information, see the Monitoring an OIEP via Background Processes section here.

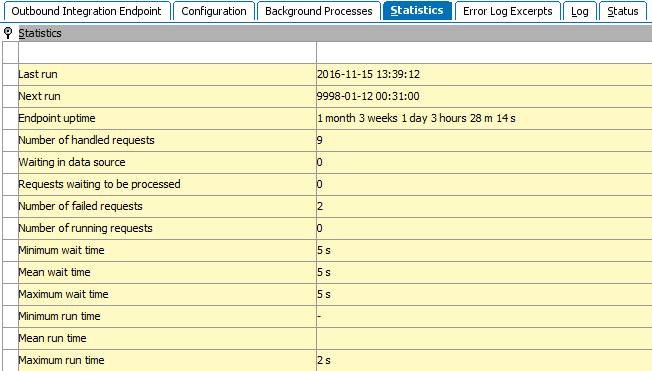

Statistics Tab

This tab provides statistics about the number of requests handled, run times, and wait times. The information cannot be edited nor exported.

Error Log Excerpts Tab

This tab shows data from the main Java log file related to failed background processes with Log Level > 'Info.' Click a hyperlink to a failed background process and correct the cause of the failed background process. For more information, see Handling Failed OIEP Background Processes here.

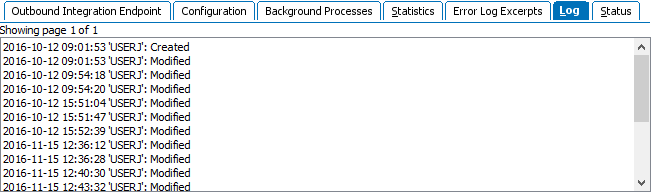

Log Tab

This tab provides information about changes to the OIEP configuration by a user, including the timestamp.

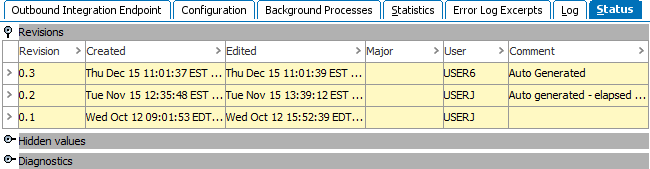

Status Tab

This tab provides information about revisions, hidden values and diagnostics.

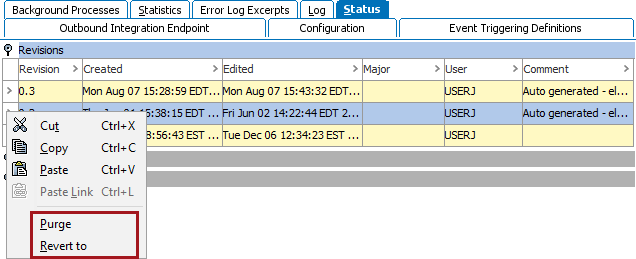

Right-click on the > to the left of a revision row to display a menu that allows you to revert to the changes for the selected revision or delete (purge) the selected revision.

For more information on revisions, see the Revisions topic in System Setup / Super User Guide documentation here.
