GDSN Web UI Buttons

The following button components are available for use in a GDSN Web UI:

• The Register button, , button registers the selected products with a GDSN datapool. For configuration details, see the GDSN Register Action Button section of the GDSN Provider documentation here.
• The Publish button , , publishes the selected products to a GDSN recipient. For configuration details, see the GDSN Publish Action Button section of the GDSN Provider documentation here.
• The Hierarchy Withdrawal button, , sends a hierarchy withdrawal command for the selected packaging hierarchy. For configuration details, see the GDSN Hierarchy Withdrawal Action Button section of the GDSN Provider documentation here.

The GDSN Action buttons can be used on both NodeDetail and NodeList screens in either the Toolbar or ButtonPanel. The same set of configuration properties exist regardless of the location of the buttons.

The buttons are pre-configured in the following locations:

• Generic Search result screen
• Power Search result screen

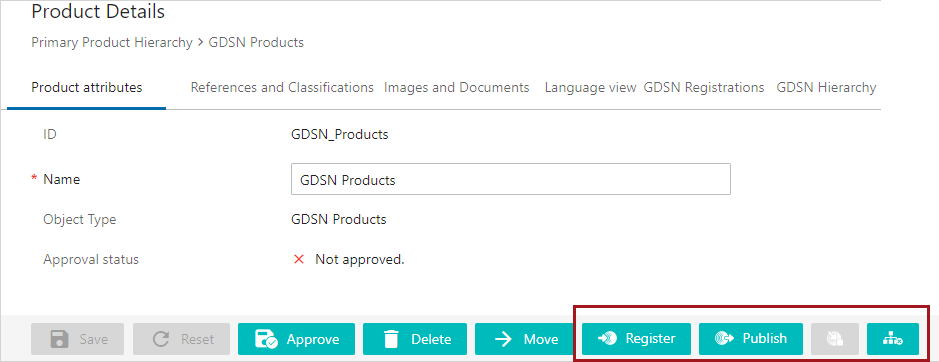

• Product Details screen

Adding a GDSN button to a Node Details page

1. Open Designer for a Node Details page. The Node Details Properties configuration dialog is displayed.

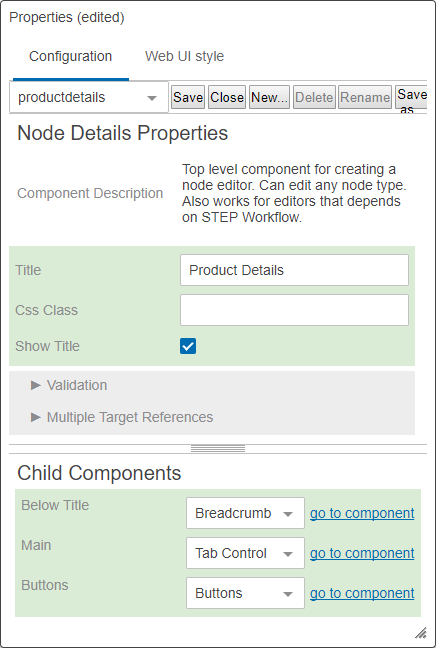

2. In the Child Components section, click the go to component link for the Buttons field.

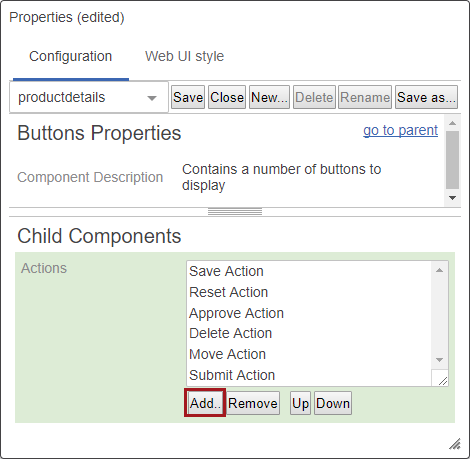

3. On the Buttons Properties configuration dialog, in the Child Components section, click the Add button for the Actions field.

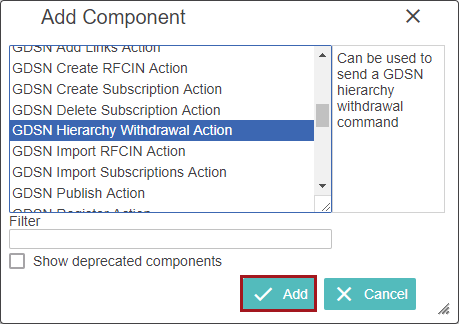

4. On the Add component dialog, select a GDSN component and click the Add button.

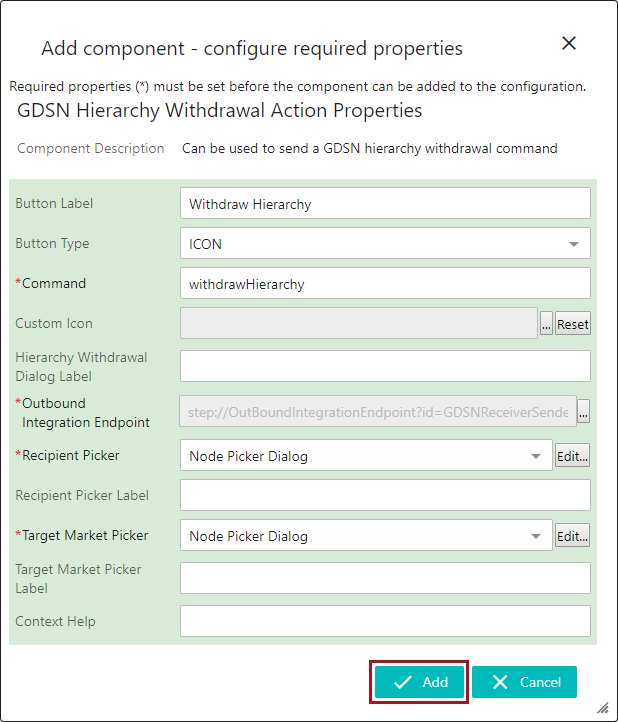

5. On the Add component - configure required properties dialog, add all necessary data and click the Add button.

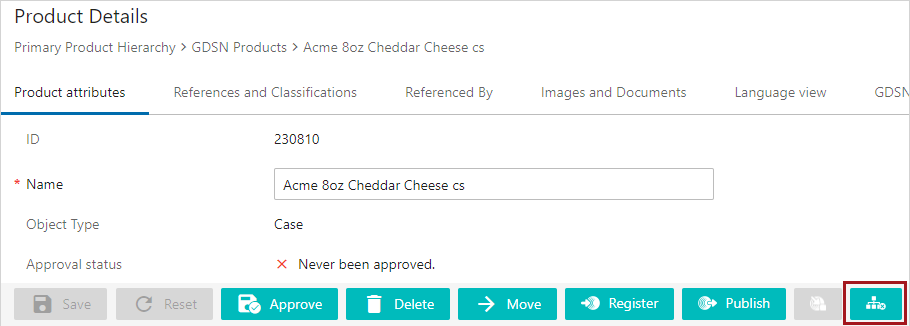

6. The button displays on the Node Details page Button Panel.

Adding a GDSN button to a Node List page

1. Open Designer for a Node List page. The Node List Properties configuration dialog is displayed.

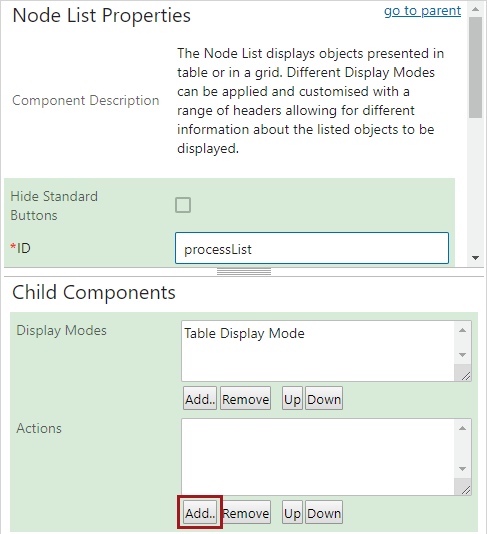

2. In the Child Components section, click the Add button for the Actions field.

3. In the Add component dialog, select a GDSN component and click the Add button.

4. In the Add component - configure required properties dialog, add all necessary data and click the Add button.

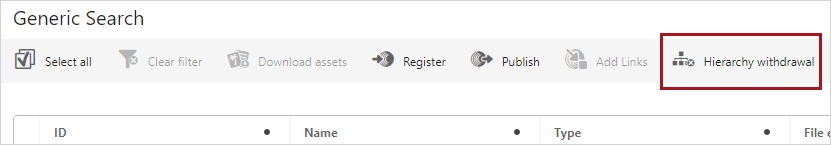

5. The button displays on the Node List page Toolbar.

Note: Above steps can be used to add the required buttons.
