GDSN Hierarchy Withdrawal Action Button

In the Designer, the Web UI component for the Hierarchy Withdrawal button is called GDSN Hierarchy Withdrawal Action. Each parameter is described in the following table.

Open Designer for a Node Details Properties screen.

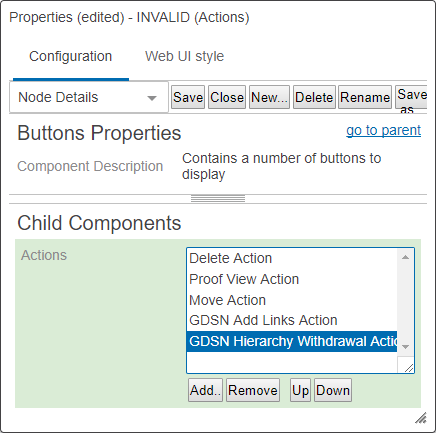

In the Child Components section, click the 'go to component' link for the Buttons field.
Double click on the 'GDSN Hierarchy Withdrawal Action' if already added. If not, add the action button 'GDSN Hierarchy Withdrawal Action.'

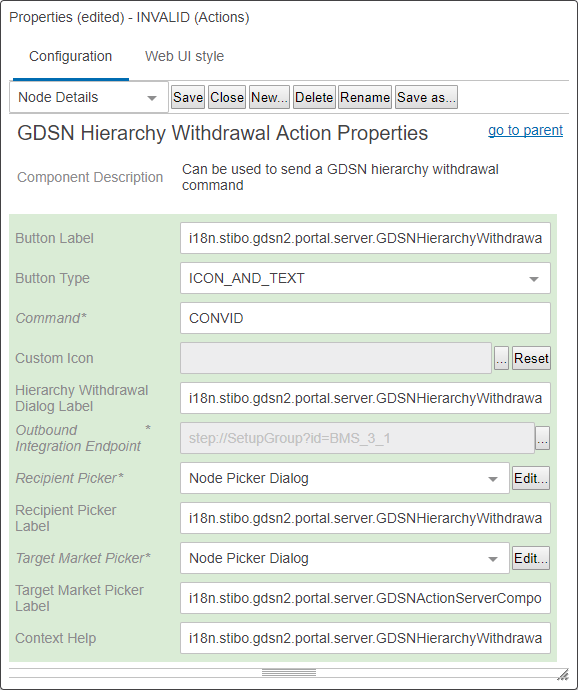

GDSN Hierarchy Withdrawal Action Properties screen will be displayed.

Note: We can access the ‘GDSN Hierarchy Withdrawal Action’ button through Node List screen as well.

Parameter	Description
Button Label	Optional Add a label for the Hierarchy Withdrawal button, displayed when the Button Type is Text or Both
Button Type	Optional Specify if the button should appear with an icon, text (the button label) or both.
Command	Mandatory Specify which GDSN command that should be executed when a user clicks the Hierarchy Withdrawal button. In the default GDSN configuration, the command is 'hierarchyWithdrawal.'
Custom Icon	Optional Adding a custom icon will overwrite the default icon displayed in the graphical interface. The recommended size of the icons is 20 (height) x 35 (width) pixels. The recommended colour of the icon in 'Jewel-toned' deep colours that fade well for the disabled state. *It should be noted that custom icons can only be used for actions configured as child components to a Node List screen.
Outbound Integration Endpoint	Mandatory Specify the Outbound Integration Endpoint that should be used to send the command to the data pool.
Hierarchy Withdrawal Dialog Label	Optional Add the Hierarchy Withdrawal Dialog Label to the dialog that appears when clicking the Hierarchy Withdrawal button.
Recipient Picker	Mandatory Configure the pop-up dialog that enables the end user to pick recipients for the hierarchy withdrawal.
Recipient Picker Label	Mandatory Apply the label of the pop-up dialog used by end users to pick recipients for the hierarchy withdrawal.
Target Market Picker	Mandatory Configure the pop-up dialog that enables the end user to pick target markets for the hierarchy withdrawal.
Target Market Picker Label	Mandatory Apply the label of the pop-up dialog used by end users to pick target markets for the hierarchy withdrawal.
Context Help	Optional The name of the action will be displayed on mouse hover on the button when presented in the GUI.
