Starting a Structured Translation

This topic describes, step-by-step, how to initiate a structured translation export of STEP content into an Excel or XML file. Users who read and understand this topic should be able to produce a file suitable to send to a third-party translation vendor for translation. Other translation methods supported in STEP  are covered in their own topics.

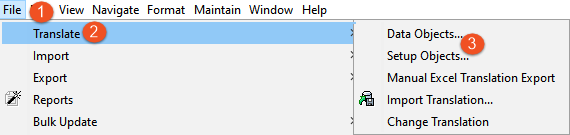

To initiate a structured translation export you must access the Request Translation Wizard. To do so, open the File dropdown from the menu bar, select Translation, and then click Data Objects... (initiating an export for Setup Objects is covered in the Structured Translation for Setup Objects documentation here).

The Request Translation Wizard guides the user through five steps that enable the user to adapt the translation export to their specific requirements.

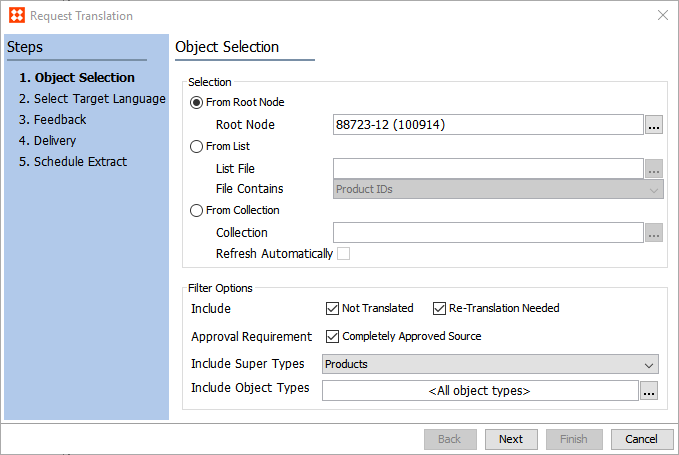

Step 1 - Object Selection

The first step in the Request Translation Wizard is Object Selection. In this step, the user selects which objects should be included in the translation export, and from where in STEP the objects should be pulled. There are two sections in this screen, each with a number of options included within.

In the Selection portion of the Object Selection step, the user indicates from where in STEP the content to be translated should be pulled. There are three ways to select that content.

• From Root Node: For importing objects directly from the Tree. If the user has started the Request Translation Wizard while standing on an object in the Tree, that object will pre-populate the Root Node field. If the user wishes to change the selection, clicking the button will bring up a screen allowing the user to either Browse the Tree for the object, or Search for the object by typing the sought-for object directly into the search field.
• From List: For importing a file with data to be translated. This is different from the structured translation import function (covered in detail in the Importing Translation Excel Files documentation here and the Importing Translation XML files documentation here) in that the file being imported does not contain already-translated content. In the field entitled List File, click the button to browse or search your computer's folders for the appropriate file. In the List Contains field, click inside the field to display a dropdown. Select from the listed options whether the data being imported contains Product IDs, Product Names, Classification IDs, Classification Names, Asset IDs, or Asset Names. There is no option to multi-select.

Note: There are no formatting rules for the Excel file you select. If it is a single column of product IDs with no heading and not other content, that is perfectly acceptable. When you select which kind of object type you plan to import, STEP will look for valid IDs for those objects, and will import only those for which it can match to a valid ID.

• From Collection: For importing a manually selected grouping of various object types (which can, potentially, be from multiple super types) grouped in a collection. In the Collection field, click the button and either browse or search for the collection to be translated. If the collection is based on a search and you want to ensure that new or amended values in the collection are captured prior to exporting for translation, click the box beside Refresh Automatically.

In the Filter Options section of the Object Selection step, the user can specify object type and the status of the objects that should be included in the translation export being created.

• Include: Users may elect to include or exclude values that are Not Translated or values that have been amended and are thus designated as Re-Translation Needed. Click the boxes next to each to include them in the filter. One or the other must be checked to proceed. Otherwise, the Next button will be inactive.
• Approval Requirement: By checking the box beside Completely Approved Source, the user is electing to enforce the requirement that all objects must be fully approved prior to being translated. By leaving this option unchecked, the user is waiving the requirement that an object be fully approved to be exported for translation. With this setting unchecked, objects that are partially approved can be exported, but only data from the approved workspace will be included in a translation export.
• Include Super Types: In this field, users may click the dropdown to select which super types should be translated. This field is only activated after a user has selected one of the prime selection methods in the Selection section above, and then defined a node, file, or collection from which to start the translation. The super type options are Products (also the default), Classifications, Assets, or All. Because the Excel translation method does not allow for mixed super types, if the All option is selected, the Excel will be unavailable as a translation method in a later step (Delivery).

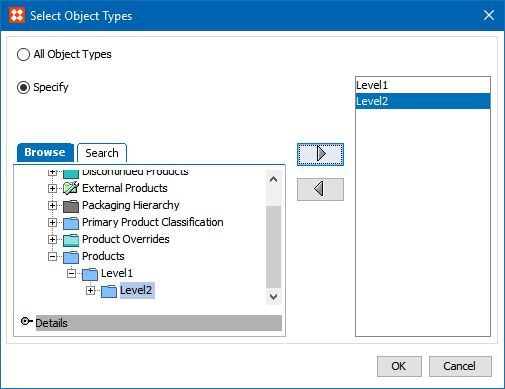

• Include Object Types: In this field, users may select which object types should be included in the translation export. This field is only activated after a user has selected one of the prime selection methods in the Selection section above, and then defined a node, file, or collection from which to start the translation. To specify which object types to include, click the button. This brings up a Select Object Types window.



  • All Object Types is the default selection in the Select Object Types window. If the user wishes to include all object types included under the super type selected in the previous field, there's nothing to do in this window. If, however, the user wants to include only a subset of object types in their export, they may select Specify. This activates the Browse and Search tabs that enable users to select the object types that should be included. To add the object type the user should first select it in either the Browse or Search tabs, and then click the right-pointing arrow to bring it into the box where all included object types are collected. Conversely, to remove object types to be included, select the object type and then click the left-pointing arrow.

  • If the user has opted to translate the objects contained inside a collection, the Include Super Types field should be set to 'All'. If the user wants to include a subset of object types within that collection, clicking the beside Include Object Types will bring up a Select Object Types window that contains the three super types (Products, Classifications, and Assets) from which to select child objects.

  Version:

  10.0

  • Version latest
  • Version 2026.2
  • Version 2026.1
  • Version 2025.4
  • Version 2025.3
  • Version 2025.2
  • Version 2025.1
  • Version 2024.4
  • Version 2024.3
  • Version 2024.2
  • Version 2024.1
  • Version 2023.4
  • Version 2023.3
  • Version 11.2
  • Version 11.1
  • Version 11.0
  • Version 10.3
  • Version 10.2
  • Version 10.1
  • Version 10.0 (Viewing)
  • Version 9.3
  • Version 9.2
  • Version 9.1
  • Version 9.0
  • Version 8.3
  • Version 8.2
  • Version 8.1
  • Version 8.0

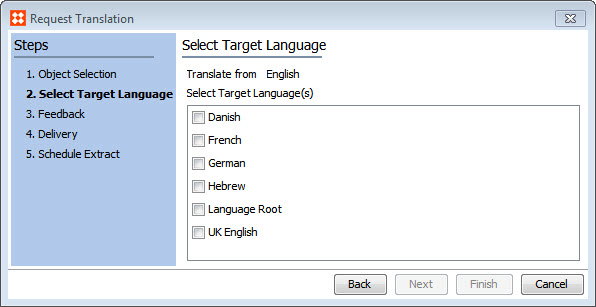

Step 2 - Select Target Language

In the Select Target Language step, the user is prompted to select the language they would like to translate their content into. Click the language or languages that are applicable and click the Next button. It is also possible to click the Finish button, which will begin the export process immediately, provided there are no errors.

Note: If you select multiple languages, the objects listed in the next step, Feedback, will not be accurate. The data shown on the Feedback screen will be for just one language, not all of the selected languages.

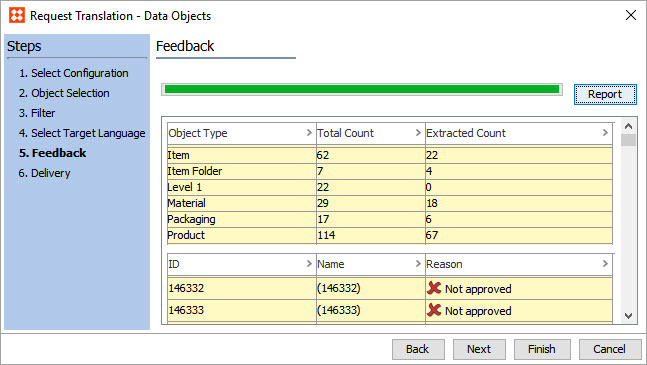

Step 3 - Feedback

The Feedback step's primary function is to provide the user with reporting about the objects slated to export so the user can know what precisely will translate before starting the export. On this screen the user will see listed all of the objects that will be included in the translation export. The breakdown of this data is captured in two tables.

The first table is the summary of what will be included in the export. This is the data it presents:

• Object Type - The different kinds of object types that will be included in this extraction. In this example, there is one object type: ItemFamily.
• Total Count - The total count of each object type that will be included in the extraction. In this case, there is one instance of the ItemFamily object type included in the extraction.
• Extracted Count - The number of each object type that will be included in the translation export.

The second table is a list of all of the objects that will be part of the extraction.

• ID - The STEP ID of the object being translated.
• Name - the STEP name given to the object being translated.
• Reason - The listed reason why it is being included or excluded from the extraction. A green checkmark ( ) indicates that it will be exported. A red X ( ) indicates that it will not be exported. Below are some of the reasons a green checkmark will appear or a red X might appear:
  • Up to Date: objects will not be exported
  • Not Translated: objects will be exported for translation
  • Not Approved: objects will not be exported (not applicable if the 'Completely Approved Source' requirement is unchecked in the Object Selection screen)
  • Not in Approved workspace: objects will not be exported because they are only in the Main workspace and not the Approved workspace (Regardless of whether the 'Completely Approved Source' requirement is checked, translation only pulls content from the Approved workspace. If the object has no data, then the object will not be included in the export)
  • Re-translation Needed: objects will be exported for translation
  • In Progress: objects will not be exported because they are already being translated
  • Invisible in Target: objects are not visible in target language and will not be extracted for translation
  • No translation to source: objects will not be exported because the source>target translation being requested is invalid. For instance, let us say a translation relation exists for an object from English to French with English set as the Master language. The user then requests a translation be started from French to English. Because English is set as the master language for the object being translated, this object cannot be included in a French to English translation, and the 'No translation to source' status will display for that object.
  • No translatable content: objects will not be exported as there are no values that are language dependent

The second table in the Feedback screen will display up to 1,000 items. If there are more than 1,000 items, a row of text will appear in the second table that reads, 'More than 1,000 objects, only first 1,000 is shown...'. To see all the objects, click the Report button in the upper right corner of the Feedback screen. The objects will then be exported into a single-column CSV file for review.

For each object listed in the CSV file, there is a + sign (will be included in the export) or a - sign (will not be included), followed by the reason for why it is or is not included in the export.

This is an example from the CSV file of an object that will not be extracted for translation. Note the minus sign:

This is an example from the CSV file of an object that will be extracted for translation. Note the plus sign:

If the user already knows they want the translation data exported as an XML file, they may click Finish. However, if the user wants an Excel file, or the XML file delivered in a format other than the default (file), they must click the Next button to manually configure the delivery aspects of their export.

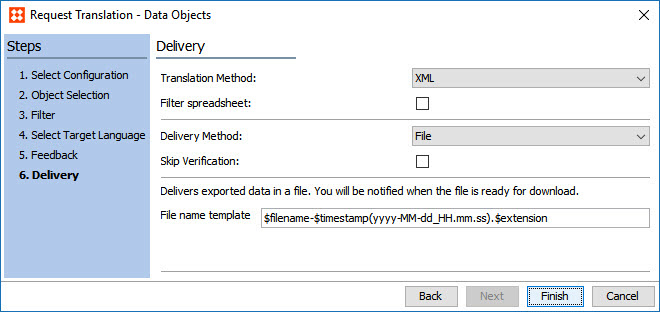

Step 4 - Delivery

In the Delivery step, the user specifies whether their content should be exported into an XML or Excel file, and the method in which that file should be delivered.

Translation Method - From the dropdown, select either XML or the relevant Excel version

Filter spreadsheet - If either of the Excel versions have been selected from the Translation Method dropdown, the user may select Filter spreadsheet. This ensures that only the attribute values that require translation are included in the export (those objects that received the in the Feedback screen). Objects that do not require translation (those that received the in the Feedback screen) are excluded when this option is selected.

Delivery Method - Choose one of seven options that determine by what method the user will receive the exported translation file. Dependent on how a user's specific STEP system has been configured, some of these options may not be available.

The available export options depend on your system setup. The commonly used delivery methods are:

• Deploy: Delivers a file to a specified directory
• Email: Delivers a file as an email attachment. The user must specify the email address of the recipient, a subject, and the body text
• File: Delivers a file in the background process. The user is notified when the file is ready for download
• FTP: Delivers a file using file transfer protocol (FTP). The user must specify the host name, user name, password, and the file name used to deliver the file
• Server Side Delivery: Exports the file into a folder located on the Application Server of the STEP system. The file is only delivered if the specified path has read / write access on the server
• SFTP: Delivers a file using the Secure File Transfer Protocol (SFTP). The user must specify the host name, user name, password, and file name
• WebSphere Commerce Import: Depends on a user's system setup

Check the box for Skip Verification if you are certain that all of the objects listed in the Feedback screen are correct to export. Checking this box prevents suspension of the export process until a user visits the export's background process and confirms the export may proceed.

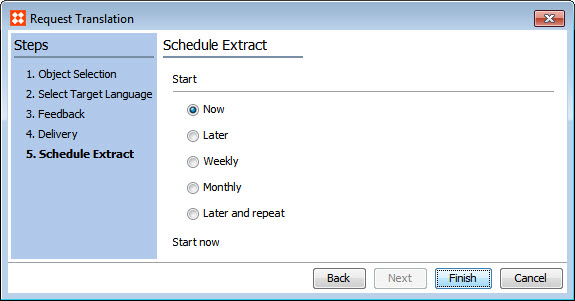

Step 5 - Schedule Extract

Important: Consider the time zone of the application server compared to that of the workbench (the client) where the schedule is created or viewed. When scheduling a job, the local time zone is displayed in the workbench, but the time zone of the server is used to run the background process. Although displayed, the time zone of the client is not included in the instruction to the server to run the job. This can cause confusion about when the job will run since the scheduled time is not automatically converted to accommodate potential differences in time zones.

In the Schedule Extract step, the user may select one of the scheduling options for when STEP should proceed with the translation export.

Now - Clicking Finish initiates the export immediately.

Later - Brings up two additional fields, Start at (hh:mm) and Start on (yyyy-mm-dd). The user sets the time and date and STEP completes the translation export at the configured time.

Weekly - Allows the user to create a recurring export to execute once or multiple times a week. The user sets the time and date to start, the date at which the weekly export will end, and then the day (or days) of the week the export should run until the configured interval has elapsed. One or all days of the week can be selected.

Monthly - Allows users to set a recurring translation export once a month. The user sets the time and date to start, the date at which the weekly export will end, and then a non-date-specific day in the month at which the export (or days) of the week the export should run until the configured interval has elapsed. For example, the monthly export can be scheduled for the first Monday of every month.

Later and repeat - Allows users to create a recurring export that can be auto-initiated multiple times a day. In addition to the time and date fields, the user can set the number of minutes between auto-exports.

Use the Later and repeat scheduler with caution as it is possible to set up a recurring export as often as every few minutes. If the intended interval is improperly set, the STEP system can experience negative performance issues. For instance, if the Delivery Method of the export is set to ship to an FTP for a translation vendor to retrieve, and the vendor's tasked with processing all files they retrieve, the user could incur unexpected costs.

When the export schedule has been configured, click Finish, and the translation exports will commence according to the schedule you have set.

Reviewing Product Status

When a structured translation export process has been initiated, a few final steps must be taken in that export's background process. If in the Schedule Extract screen you selected Now, a small window will display showing two options: Go to Process and Close.

Click Go to process to go directly to the export's background process. Click Close if you are not able to progress the translation at that moment. To access the background process directly at a later date, click the BG Processes tab, expand Translation, and then expand Active Processes. Click on the relevant process and view the Result section.

If more than one target language is selected, a background process will be created for each target language, each process creating its own file.

1. The translation produces an Excel file listing all of the objects that are included in the export. These listed objects are the same objects that displayed on the Feedback screen. To view the spreadsheet, click the disk icon and follow the prompts.

2. A prompt below the report file asks, "Do you want to export these products for translation?" Click Yes to proceed with the export. Click No to abort the export. If the user has checked the box for Skip Verification on the Delivery screen, then the export proceeds directly to generating an export file, and there is no question for the user to answer.

3. To export the products for translation, click Yes. A zip file is created that contains the data to be translated.

If you click No, the translation export is ended, and the translation status of the selected objects is not changed.

4. Click the Save icon to save the zipped translation file.
