Layout Transformations

When you add a transformation, you typically need to specify parameters for the transformation to work. The following layout transformations are available and are defined in the sections below:

• Apply Alternate Row Colors
• Repeated Rule
• Rule When Different

Prerequisites

The instructions in the following subsections assume that you have already added the specified transformations to your table by following the instructions in the Add a Transformation to a Table or Table Type subsection of the Table Transformations topic here.

Alternate Row Colors

The Alternate Row Colors transformation alternates the background shading of rows at a specified frequency; for example, every other row, every two rows, etc.

Example

In this example, every other row is shaded Light Blue.

Steps

1. After adding the transformation, under Parameters, click the ellipsis button (). The Alternate Row Colors dialog displays.

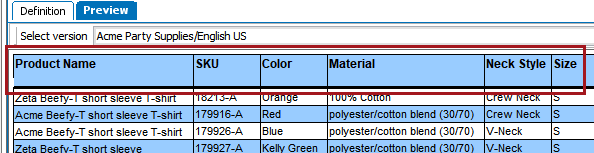

2. In the Restart count after Headings list, select either Ignore Headings, 1, or 2. Selecting 'Ignore Headings' will actually include headings in the row shading. For example, if the Normal Color is blue and the Alternate Color is white, then the header row will be shaded blue if 'Ignore Headings' is selected.

Selecting 1 will cause the row shading to start with the normal row(s) that appear directly below Heading (1) rows. Selecting 2 will cause the row shading to start with the normal row(s) that appear directly beneath Sub Heading (2) rows.

Check Ignore Footers to prevent row colors from being applied to Footer rows.

3. In the Normal Colored Rows field, enter the number of rows to shade in the Normal Color before shading rows with the Alternate Color.
4. In the Alternate Colored Rows field, enter the number of rows to shade in Alternate Color before shading rows with the Normal Color again.

In the table example shown at the beginning of this topic, 1 has been selected for both the Normal and Alternate options.

5. In the Normal Color list, select the relevant color.
6. In the Alternate Color list, select the relevant color.
7. Click OK.

Note: For a more complex level of control over the appearance of alternate-colored rows in lengthy, split tables with multiple repeated headers, the Alternating row colors settings available in the Header Repeating Pagination Plugin may be a better option than using the Alternate Colored Rows transformation. For more information, see the Header Repeating Pagination Plugin topic here.

Repeated Rule

The Repeated Rule transformation inserts a specified line style based on table rules; for example, a rule line of a certain width is added at a specified frequency.

Example

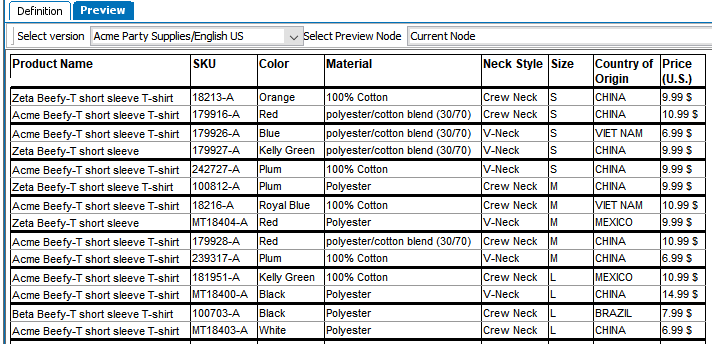

In the below example, a 2 pt rule line is added every two rows.

Steps

1. After adding the transformation, under Parameters, click the ellipsis button (). The Repeated Rule dialog displays.

2. From the Restart Heading Level list, choose either None, 1, or 2. The default setting is None, meaning that no line style is inserted at the heading level. When you select 1 or 2, the line style is applied again after each header row of the specified level number.

3. Check Restart when other rule found to reset the count when another line style is found in the table.
4. In the Add rule per rows field, enter a relevant number of rows to put in a line style.
5. From the Rule Above list, select the relevant line style to be used as the top border of the row.

6. From the Rule Below list, select the relevant line style to be used as the bottom border of the row.

7. Click OK.

Rule When Different

The Rule When Different transformation will automatically inserts a rule style when column contents are changed.

Example

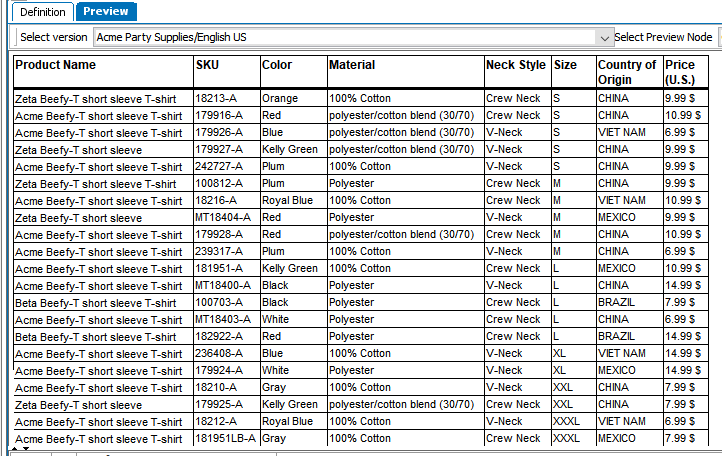

In this example, a 3 pt rule line is added every time a value in the Size column changes, so a 3 pt rule surrounds all size S rows, all size M rows, etc. This is how the table looks before the transformation:

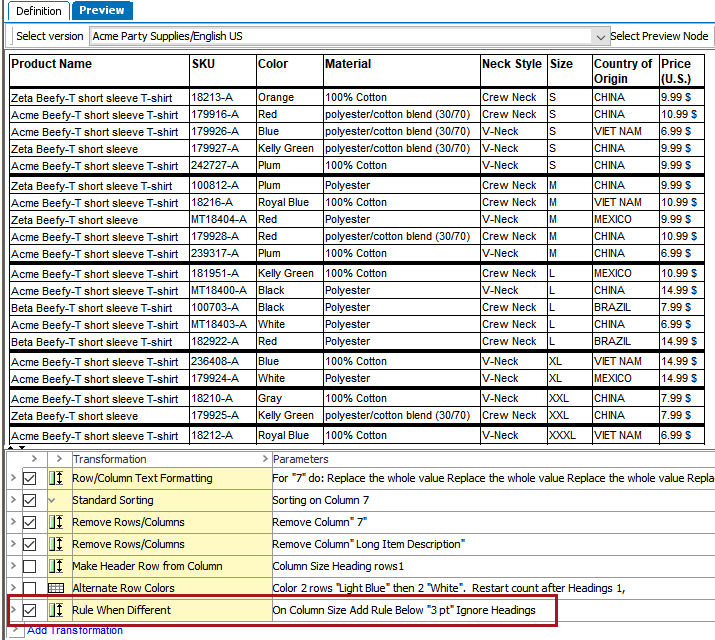

After the transformation:

Steps

1. After adding the transformation, under Parameters, click the ellipsis button (). The Rule When Different dialog displays.

2. Check the Ignore Headings check box if you do not want the transformation to consider contents in Heading columns types.
3. In the Column field,click the ellipsis button () to display the Select Column dialog.

• Select Attribute to apply the transformation to the column that contains the specified attribute. Click the ellipsis button (…) to search or browse for the relevant attribute.
• Select Product/Classification/Asset to apply the transformation to the column that contains the specified object. Click the ellipsis button (…) to search or browse for the relevant object.
• Select Heading to identify the column by typing the header text of the relevant column.
• Select Type to choose a specific column type from the dropdown list.
• Select Number to identify the column by entering the sequence number of the relevant column. For example, to apply the transformation the second column, then type 2.
• Select Group to apply the transformation to multiple columns. Click the Setup button, then click Add in the Select Row/Columns to be grouped window that displays.

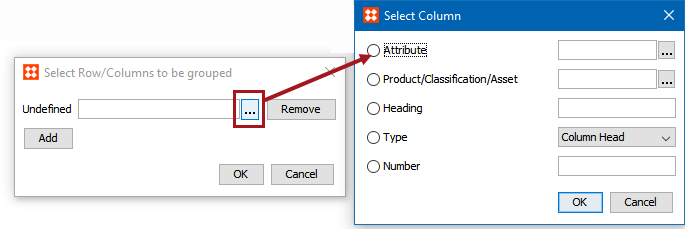

• After clicking Add, an Undefined field displays. Click the ellipsis button () to launch another Select Column dialog. This is identical to the previous 'Select Column' dialog, except without the Group option.

• Click Add again to repeat the previous steps and add more columns to the group. Click OK when done.

5. From the Rule Below list, click the relevant Line Style to be used as the bottom border of the row.

6. Click OK.
