Business Action: Add Referenced By

This action can create a reference to an object with a specific source and a type. This allows you to add an entry on the Referenced By tab of the editor for the selected object.

For example, a business action can be used to add an object as the source to an image using a specified reference type.

Prerequisites

Before using this action:

1. Ensure a valid reference type with the necessary source object exists, and that the source object is valid for the target object. For more information, see the Reference and Link Types topic in the System Setup / Super User Guide documentation here.
2. Create a business rule as defined in the Creating a Business Rule or Library topic here.

Configuration

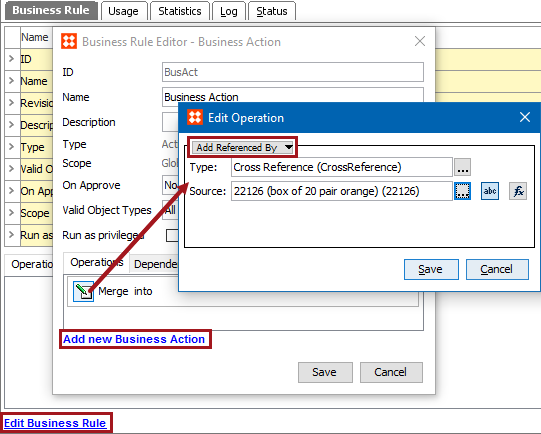

1. On the Edit Operation dialog, select the References and Links > Add Referenced By option from the dropdown.

2. In the Type parameter, click the ellipsis button (…) to display the Select Reference Type dialog, select a reference type, and click the Select button.
3. In the Source parameter, use one of these methods to select the relevant source. The source must be in accordance with the selected type, otherwise an error is displayed.

• Click the 'abc' button (), click the ellipsis button (…) to display the Select Reference Source dialog, select a valid source, and click the Select button.
• Click the 'fx' button (), click the ellipsis button (…) to display the Function Editor dialog, write a calculation to select a valid source, and click the Select button. For more information, see the Using Function Editor topic in the System Setup / Super User Guide documentation here.

4. Click the Save button to add the operation to the business rule editor.
