Creating a Business Rule or Library

After completing the one-time configuration, business actions, business conditions, business functions, and business libraries can be created in System Setup. For details about the required initial setup, see the Initial Set Up for Business Rules documentation here.

1. In System Setup, identify the setup group object type instance configured to hold business rules. In this example, the Global Business Rules instance is configured to hold actions, conditions, functions, and libraries.

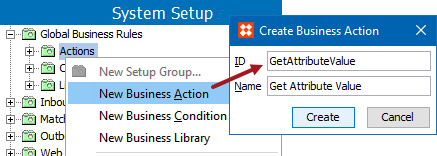

2. Right-click on the desired setup group to display a menu for creating the type(s) allowed.

3. Enter an ID and a Name (such as Get Attribute Value) and then click the Create button. The selected business rule is created.

Note: Business rule objects are shown as read-only when viewed in the Approved Workspace.

4. To configure a new action, condition, or functions, use the steps defined in Editing a Business Action, Condition, or Function, (here), or to configure a new library, use the steps defined in Editing a Business Library (here).

The following hierarchy shows a setup group object type instance named Global Business Rules that is configured to hold actions (for example, Get Attribute Value), conditions (for example, Object Damaged), and libraries (for example, Workflow Utilities).
