Create a GDSN Web UI

Use STEP Workbench to create a Web UI that is based on the 'User Web UI.' The Web UI illustrates how you can create a GDSN Web UI, but it is not production-ready. Additional customization is required to address your company's needs.

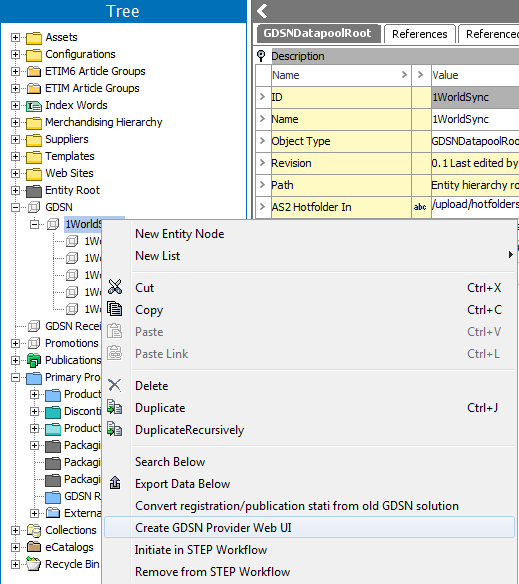

1. In the Tree expand GDSN and right-click the relevant data pool entity.
2. Click Create GDSN Provider Web UI.

3. In the Create GDSN Provider in Web UI dialog, specify the following:

• Web UI ID: The ID of the Web UI. Is also used as part of the URL for the Web UI. The Web UI ID must not contain spaces. ID is mandatory while creating a GDSN Provider Web UI.

• Web UI Name: The name of the Web UI. While the name is not mandatory, having it empty could cause confusions when there are multiple Web UIs created.
• Setup Group: Select the setup group where the Web UI configuration is stored. The setup group field is populated with any setup group that allows Web UIs. If there are no setup groups that allow the creation of a Web UI, a warning is displayed before the dialog is displayed.
