Metric Visualization in Web UI

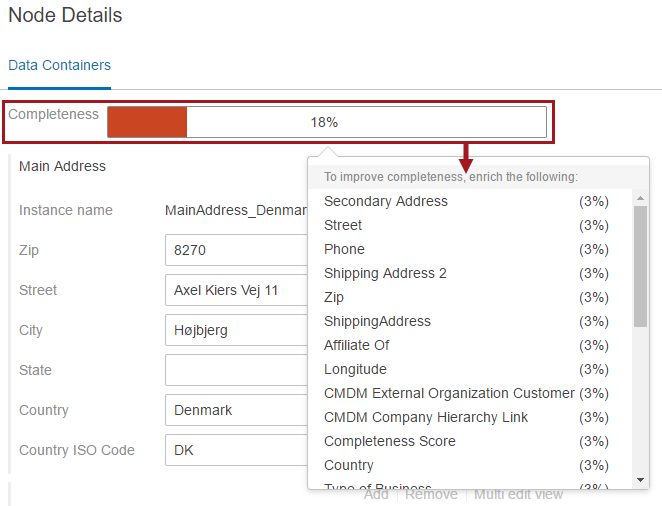

Metric score indicators are available on Node Details component pages, allowing users to view the quality of the data currently selected node in Web UI. Like in workbench, object quality is represented by a completeness meter. Additionally, mousing over the meter will provide text describing what you can do to improve the quality percentage.

Adding the Completeness Meter Component

  1. In design mode, navigate to Node Editor properties.
  2. Under Child Components, click Add.
  3. In the 'Add component' window that appears, select 'Completeness Meter,' and click Add.
  4. Click Save.

Configuring the Completeness Meter Component

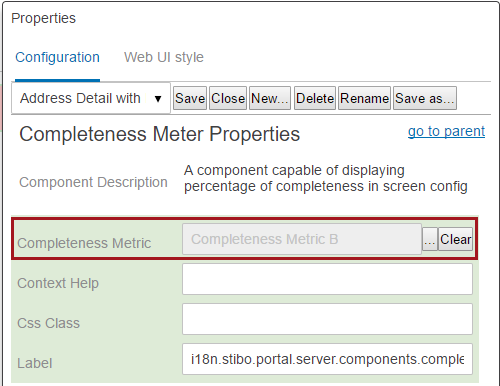

  1. Navigate to the Completeness Meter properties.
  2. In the Completeness Metric field, click the ellipsis button (), and select the desired completeness metric from the node selector. This selection will determine which completeness metric to use when evaluating the data on the object.

  1. Click Save.
