STEPXML Comparison Tool Prerequisites

Typically this type of work requires a STEP Super User to carry out the task. The user would require in depth knowledge of STEPXML, System Setup, and how to use export and import manager.

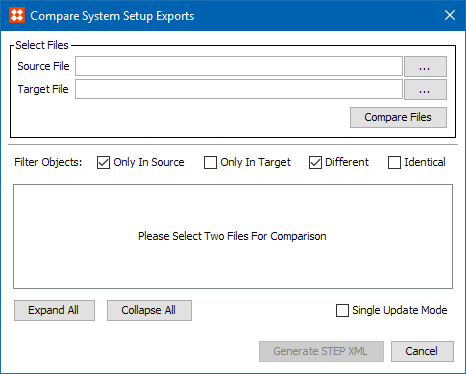

Accessing the System Compare Tool

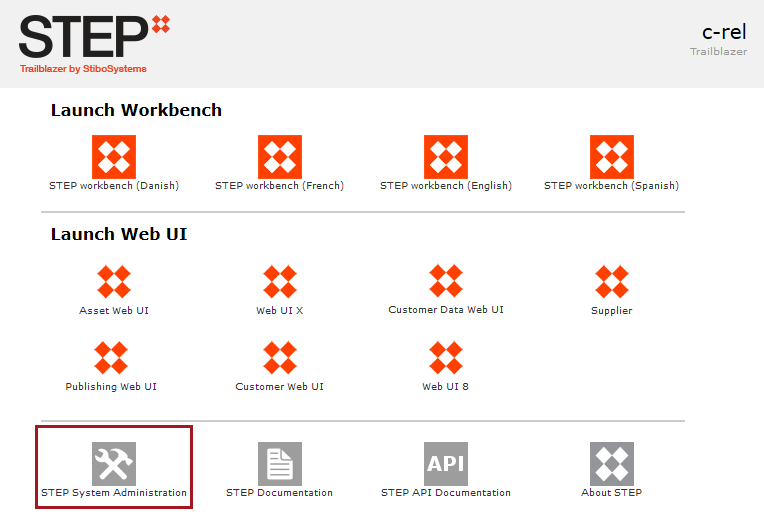

The system compare tool can be accessed through the workbench but due to the amount of memory required to run this tool it should be accessed via the STEP System Administration link on the Start Page.

To access the STEP System Administration data, the user will require Super Users privileges i.e., administrator of the system. The user will require all the privileges necessary to make the updates the imported XML requires. Once on the system admin page, select the Tools tab, and select the ‘System Setup migration tool’ link.

Moving configuration without using the STEP comparison tool

It is possible to move configuration from one STEP instance to another without using the comparison tool.
This process will only add / modify configuration loaded onto a target system. If you then need to identify what is different from the source and target machines the comparison tool will need to be used.

Move all configurations from one STEP system to another

Back-up target system
Export XML from Source system excluding assets, classifications, products, and entities
Run a Cross Context export if configuration is stored in more dimension points i.e. LOVs, attribute names etc
Import onto target system
Check execution report for errors and resolve

What configuration can be moved from one system to another?

Before a user can use the comparison tool the STEP export manager needs to be used to export STEPXML from the source and target systems.

When configuring the export the following will need to be selected:

Add the parent node for configuration files being which need to be moved from the source to the target
If this is not done the import will fail on import the configuration files as the folder it resides in will not exist
Select the STEP configurations that need to be exported

Below is a list of different types of configuration that can be exported from STEP. For details on each parameter, see the STEPXML Outbound Parameters topic in the Data Exchange documentation here.

STEPXML Configuration Parameter	Can these be exported?
Global Settings > Include Schema Reference	No
Data Objects > Include Keys as IDs	Yes – Keys on target system will be inactive
Data Objects > Include Entities	Comparison tool not used to export data
Data Objects > Include Products	Comparison tool not used to export data
Data Objects > Include Product Attribute Values	Comparison tool not used to export data
Data Objects > Include Classifications	Comparison tool not used to export data
Data Objects > Include Tables	No
Data Objects > Include Assets	Comparison tool not used to export data
Configuration > Include Action Sets	Yes
Configuration > Include Attributes	Yes
Configuration > Include Attribute Groups	Yes
Configuration > Include Attribute Transformations	Yes
Configuration > Include Bulk Update Configurations	Yes - Reliant on the classification to exist
Configuration > Include Business Rules (Global) and Libraries	Yes
Configuration > Include Collection Definitions	Yes
Configuration > Include Contexts	Yes
Configuration > Include Context Qualifiers	Yes
Configuration > Include eCatalogs	Yes – Product Selection based on a collection will exist, but search would need to be run to add products on target Any other type of Product Selection will not exist
Configuration > Include Event Queues	Yes – Event Queues and Consumers will not be active
Configuration > Include Export Configurations	Yes - Reliant on the classification to exist
Configuration > Include Import Configurations	Yes – Reliant on the classification to exist
Configuration > Include Integration Endpoints (Receivers: hotfolders, REST, API, JMS )	Yes
Configuration > Include Link, Reference and Object Types	Yes
Configuration > Include List of Values	Yes
Configuration > Include Setup Groups	Yes
Configuration > Include System Settings	Yes
Configuration > Include Table Types	No
Configuration > Include Tags	Yes
Configuration > Include Transformation Lookup Tables	Yes - Reliant on the classification to exist
Configuration > Include Units	Yes
Configuration > Include Users and User Groups	Yes – Cannot migrate new users as you require a password when creating a new user
Configuration > Include Web UI Configurations	Yes - Reliant on the classification to exist
Configuration > Include Websites	Yes
Configuration > Include Workflows	Yes
