Configuring the Inbound Message Format

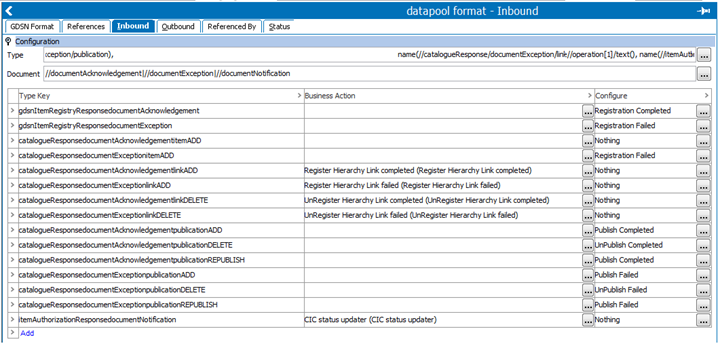

The inbound configuration defines the way the data pool receives messages from the GDSN. The inbound tab has 3 areas:

Type field

The type field contains an XPath to determine the type of the incoming message. It evaluates the XPath on the message and uses the result as a key to finding the message type.

The following shows an XML sample:

<note>
<to>Bob</to>
<from>Frank</from>
<heading>Reminder</heading>
<body>Updates due on Tuesday.</body>
</note>

To find out whether this is a note or a letter message type, apply the following XPath:

concat(name(//note),name(//letter))

In this example, the note tag is returned because note is present in the XML.

Document

Sometimes there are multiple actions in a GDSN message, for example, when more products are registered at the same time. In this case several documents are returned for parsing. The document XPath is used to specify which documents are to be handled separately. In the XML example above, the following XPath returns 2 parts of the XML.

//body|//heading

These XML parts are removed from the XML and inserted one at a time. The result messages are evaluated to determine the message type via the type XPath.

Configuration table of message types

The key that is found using the type from the previous example is used to determine what to do with the incoming message.

For each type key in the Type Key column, the related business rule is displayed when applicable in the Business Action column, and the related configuration is displayed in the Configure column.

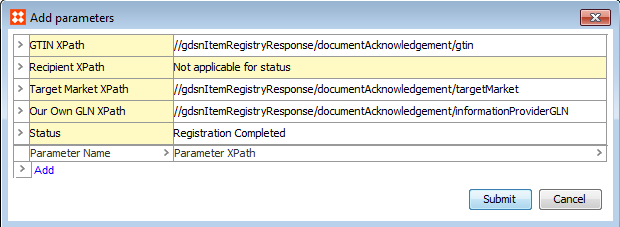

  1. To setup the configuration of a specific document type, click the ellipsis button () in the Configure column. The Add Parameters dialog is displayed.

  1. Specify the XPaths that are applicable for the document type to identify important attributes in the document. In some cases the Recipient XPath is not applicable.
  2. Specify the status that you want this action to set on the targeted item. If no status is applicable, choose None. If you chose none, verify that the status of your item is correct after this is run. You can for example use business action to verify this.
  3. Optionally, add a parameter to the action. This requires a name and an XPath. The XPath is used to find the information needed in the document, and the name is used to identify this information later. The mapped information is accessed is by using the business rule that is associated with the current action. In the business action, use the JavaScript Plug-in and bind in the GDSN Data Map. The data can now be found using the parameter name.
