Validating the Configuration

Before enabling the configured PDX OIEP, validate the configuration and settings required for the integration to be successful. Consider the sections below.

STEP Configuration Properties

Note: The following functionality is managed by configuration properties that are not available in the Self-Service UI. Contact Stibo Systems Support for assistance.

The configuration properties should include:

Mandatory properties
The declaration of the STEP attribute controlling the PDX composite attribute naming
The setting to exclude the transfer of DAM-hosted binaries

Example:

PDX.Url=https://api.pdx-preprod.stibosystems.com
PDXDelivery2.LocaleChecking=false
PDSDelivery.CompositeAttributeID=PDXCompositeAttribute
PDSDelivery.IncludeAssetContentsFromDAM=false

OIEP Advanced STEPXML Template

The Advanced STEPXML Template of the PDX OIEP should contain:

Mandatory tags
Embedded reference targets for nested data structures
References to relevant assets
References forming the packaging hierarchy

Example:

Copy

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
<STEP-ProductInformation ResolveInlineRefs="true" FollowOverrideSubProducts="true">
  <ContextList ExportSize="Minimum"/>
  <CrossReferenceTypes ExportSize="Minimum"/>
  <UnitList ExportSize="Minimum"/>
  <AttributeList ExportSize="Minimum"/>
  <Products ExportSize="Minimum" FlattenHierarchy="false">
    <Product>
      <Name/>
      <Values/>
      <ProductCrossReference Type="Product_NI" ExportSize="Minimum">
        <MetaData/>
        <Product Referenced="True" Embedded="True">
          <Values/>
          <ProductCrossReference Type="NI_ND" ExportSize="Minimum">
            <MetaData/>
            <Product Referenced="True" Embedded="True">
              <Values/>
            </Product>
          </ProductCrossReference>
        </Product>
      </ProductCrossReference>
      <ProductCrossReference Type="Pallet_to_Child"/>
      <ProductCrossReference Type="InnerPack_to_Child"/>
      <ProductCrossReference Type="Case_to_Child"/>
      <AssetCrossReference Type="ProductImage"/>
    </Product>
  </Products>
  <Assets ExportSize="Referenced"/>
</STEP-ProductInformation>

Preamble

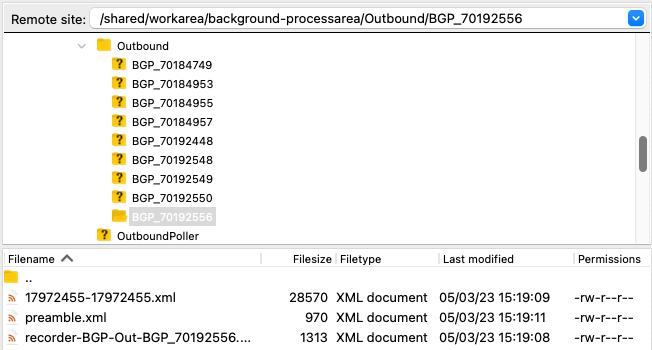

For PDX to correctly interpret and parse the inbound STEPXML, STEP needs to enrich the OIEP-generated payload with critical information about the data model implemented. This enrichment is referred to as the 'preamble' and is stored in a separate file in the BGP folder.

The content of the preamble is a mix of data model and component configurations, as well as server-side settings.

Example:

Copy

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
<AuxiliaryTypes>
  <PackagingTypes QuantityAttribute="Quantity">
    <ReferenceType ID="Pallet_to_Child"/>
    <ReferenceType ID="Case_to_Child"/>
    <ReferenceType ID="InnerPack_to_Child"/>
    <UserType ID="PA"/>
    <UserType ID="CA"/>
    <UserType ID="EA"/>
  </PackagingTypes>
</AuxiliaryTypes>
<ConfigurationProperties>
  <AttributeHelpAttributeID>AttributeHelpText</AttributeHelpAttributeID>
  <DefaultContext>EN_GB</DefaultContext>
  <PDSDelivery.AssetUploadedAttributeID>PDS Syndication Time</PDSDelivery.AssetUploadedAttributeID>
  <PDSDelivery.CategoryAttributeID>PDSCategory</PDSDelivery.CategoryAttributeID>
  <PDSDelivery.CompositeAttributeID>PDXCompositeAttribute</PDSDelivery.CompositeAttributeID>
  <PDS_Status_Attribute_Group>PDS Status Attribute Group</PDS_Status_Attribute_Group>
  <PrimaryImageType>ProductImage</PrimaryImageType>
</ConfigurationProperties>

Important: It is recommended to review the preamble of initial exports to PDX to ensure that all elements are present and populated. Missing declarations often result in incomplete data transfers.
