Oracle AQ Delivery Method

This delivery option is only available in OIEPs.

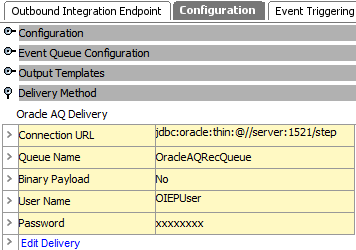

In an OIEP, the delivery method is displayed on the Configuration tab of the editor in the Delivery Method section.

Prerequisites

Note: The following functionality is managed by configuration properties that are not available in the Self-Service UI. Contact Stibo Systems Support for assistance.

Changes to the configuration properties outlined below are implemented when the server is restarted.

  1. Prior to configuration, clicking the Connection URL dropdown parameter displays the required property name. Provide a selection for the dropdown parameter using the OracleAQReceiverConnectionURL property.
  2. Prior to configuration, clicking the Queue name dropdown parameter displays the required property name. Provide a selection for the dropdown parameter using the OracleAQReceiverQueueName property.

Configuration

For information on a parameter, hover over the parameter field to display help text.

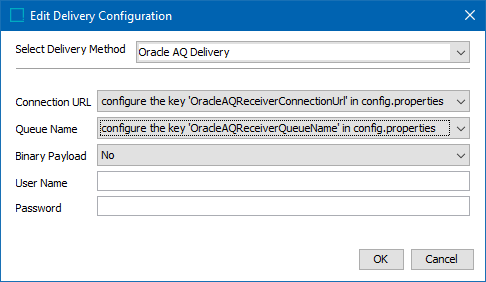

  1. In the Select Delivery Method list, choose Oracle AQ Delivery.

  1. In the Connection URL list, select a URL that points to Oracle AQ.
  2. In the Queue name list, select an Oracle AQ queue name.
  3. For Binary Payload, select Yes or No. 'Yes' is selected for non-text files.
  4. In the User Name field, enter the user name that will be used to log on to Oracle
  5. In the Password field, enter the password that will be used to log on to Oracle.
  6. On the Edit Delivery Configuration dialog, click the OK button to save the delivery method.
